XQM-0.2S
Micro Planetary Ball Mill
A micro planetary mill configured for glovebox integration.
Overview
A micro planetary mill configured for glovebox integration. The published dimensions distinguish the milling unit from its separate control box, making installation geometry part of the selection.
How it works
Planetary motion is retained in a compact assembly. The intended glovebox environment, cable routing and equipment placement must be checked with the glovebox and mill configuration.
Key features
- Published power: 90 W.
- Published jar-holder internal diameter: 50 mm; maximum permitted jar height: 60 mm.

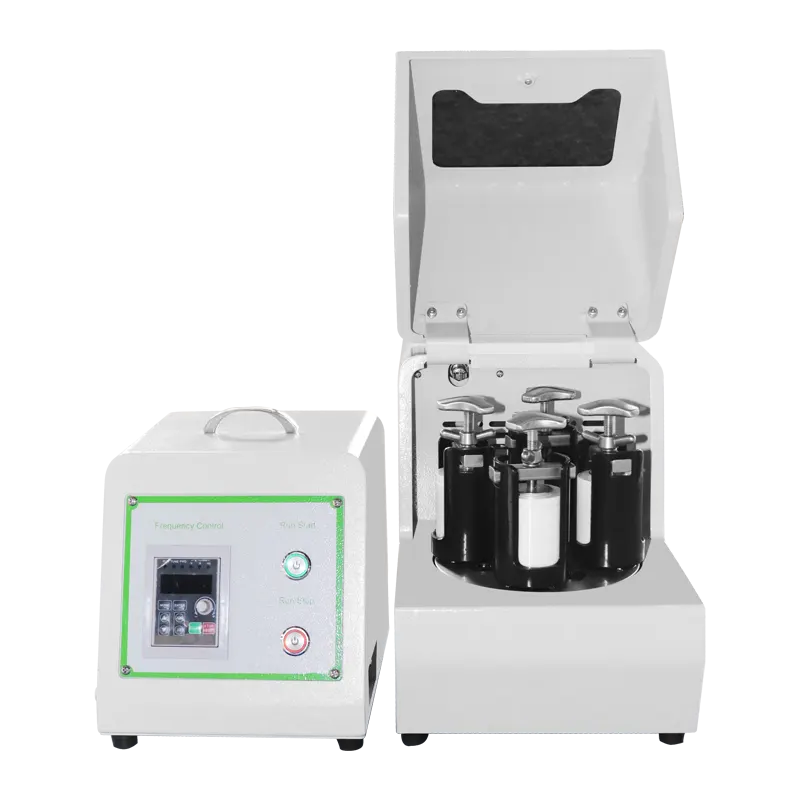

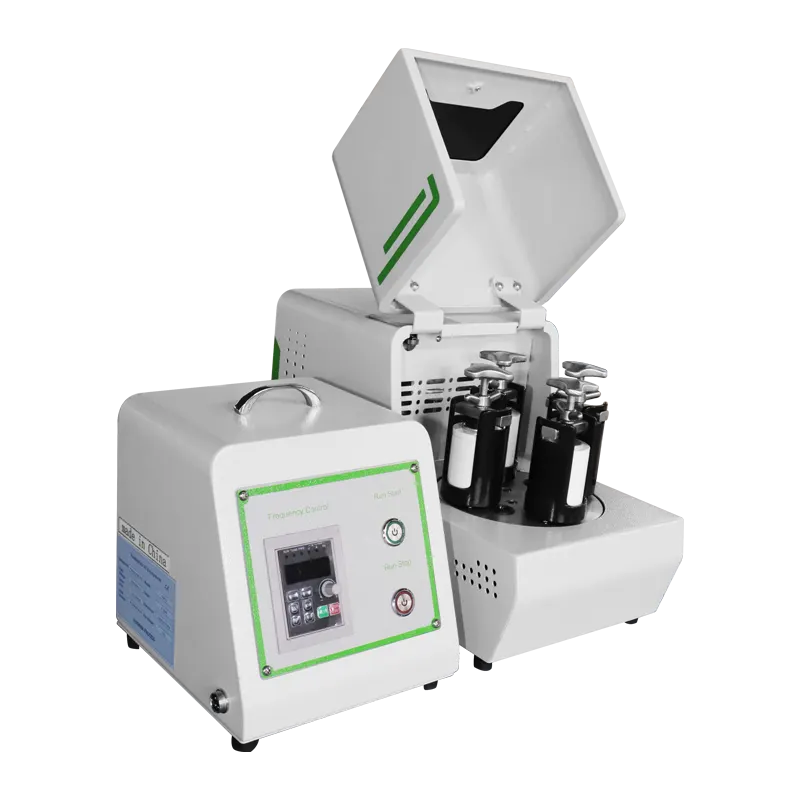

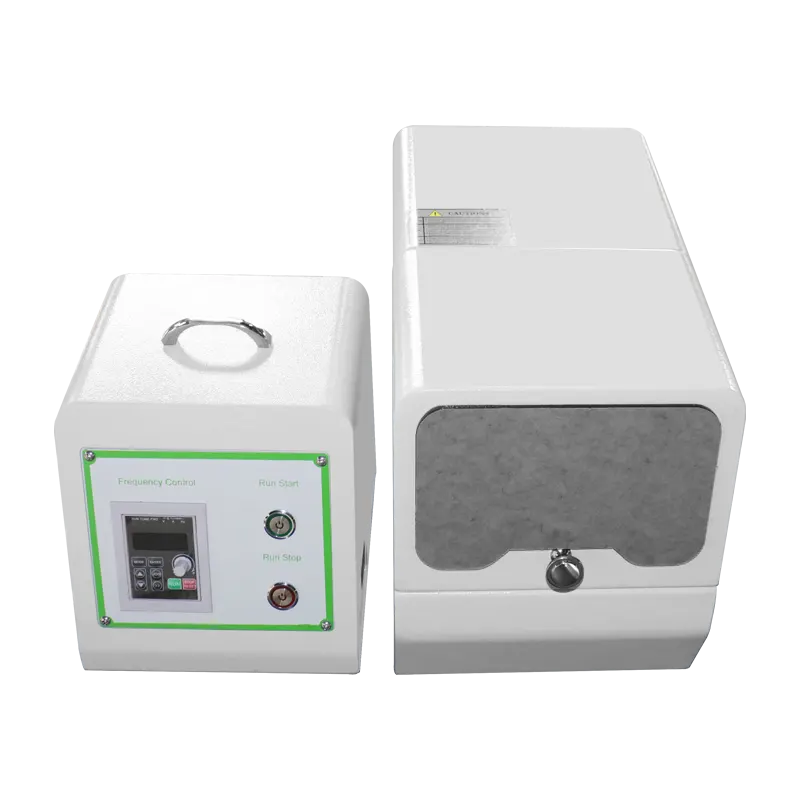

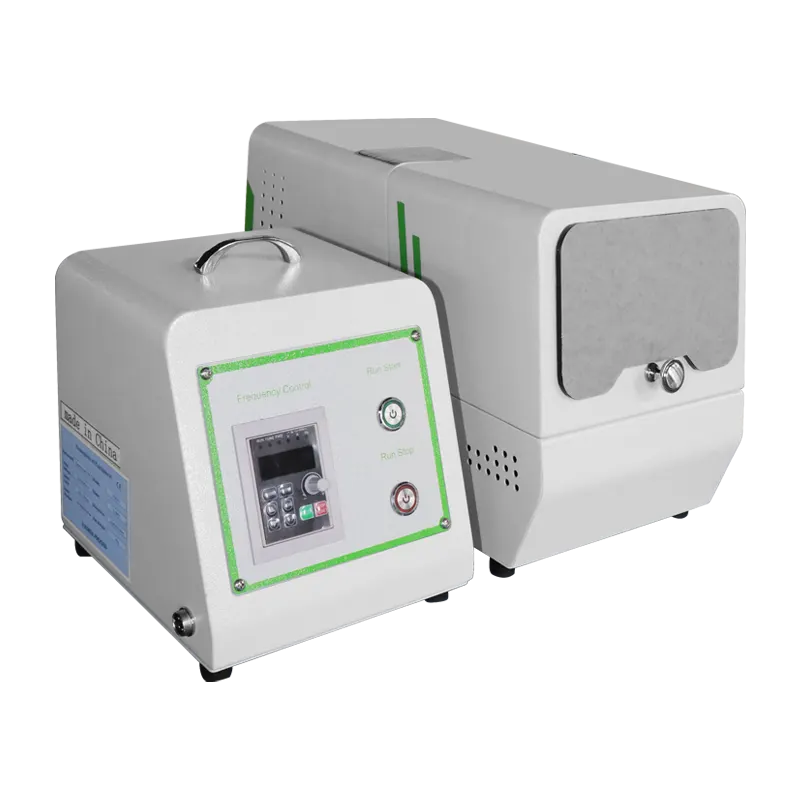

- Mill and control-box dimensions are specified separately; the product information gives a 29 kg reference net mass.
Specifications
Published catalog references are reproduced below. Nominal volume is not a sample-mass rating. Confirm the selected model, material grade, electrical supply and complete supplied configuration in the quotation.
| Model | Power (W) | Revolution speed (rpm) | Jar rotation speed (rpm) | Jar holder internal diameter (mm) | Maximum permitted jar height (mm) |
|---|---|---|---|---|---|
| XQM-0.2S | 90 | 60–580 | 120–1160 | 50 | 60 |
| Model | Dimensions (mm) | Net mass (kg) |
|---|---|---|
| XQM-0.2S | Mill: 390X220X270 ; control box: 200X180X240 | 29 |
| Item | Published reference |
|---|---|
| Standard supply reference | Single-phase 220 V, 50 Hz |
| Alternative supply reference | 110 V, 50 or 60 Hz; specify the required version in the quotation |
Applications
Small-sample materials research where the proposed glovebox atmosphere is part of the experiment.
Suitability depends on the actual sample, process and analytical requirements; a listed application is not a guaranteed final-particle-size result.
Accessories and options
Confirm compatible micro jars, media, closure and glovebox integration. Larger vacuum jars or cooling modules cannot be assumed to fit the published holder geometry.
- Jar and media: confirm material, volume, holder fit and the complete working load.
- Vacuum or gas requirements: specify the complete jar, lid and seal arrangement; no pressure rating is assumed.
- Utilities and supply scope: state voltage, frequency, phase, destination and required documents; confirm included versus optional items.
Compare milling jars · Compare grinding media · Low temperature planetary grinding machines · Ultrasonic planetary ball mills
Selection guidance
Check transfer/access openings, working height, loaded equipment mass, cable feedthroughs and heat removal. Placement in a glovebox does not make the mill itself a vacuum-rated pressure vessel.
Work through the selection guide · Request a configuration quotation
Trials and comparisons
No identifiable trial of this exact product/configuration was found in the available planetary-milling test summaries. A result from a different mill, jar grade or assistance system is not attributed to this product.
A comparison to request
A useful integration test checks installation, temperature and sample handling under the intended atmosphere. No XQM-0.2S-specific particle-size result is identified in the available test summaries.
Discuss a sample evaluationProduct FAQs
Can the whole mill be evacuated simply because it is a glovebox version?
Do not assume that. Confirm the glovebox operating conditions and the mill’s permitted environment with the engineer. Jar vacuum capability and the pressure rating of the complete assembly are separate matters.
How should I select the XQM-0.2S configuration?
Check transfer/access openings, working height, loaded equipment mass, cable feedthroughs and heat removal. Placement in a glovebox does not make the mill itself a vacuum-rated pressure vessel. Published power: 90 W. Nominal mill capacity is not the usable sample mass; account for media and working space.
Which jars and grinding media should I request for this mill?
The XQM-0.2S reference gives a 50 mm holder internal diameter and a maximum permitted jar height of 60 mm. Check the complete lid-inclusive envelope. Choose the jar working material and media around sample chemistry and contamination limits; confirm the complete loaded mass.
Are cooling and ultrasonic equipment included?
Confirm compatible micro jars, media, closure and glovebox integration. Larger vacuum jars or cooling modules cannot be assumed to fit the published holder geometry. Optional equipment is included only when it is explicitly listed in the agreed configuration and quotation.
What trial evidence is available for this mill?
No matching measured trial is identified for Micro Planetary Ball Mill in the available summaries. A useful integration test checks installation, temperature and sample handling under the intended atmosphere. No XQM-0.2S-specific particle-size result is identified in the available test summaries. A free sample-grinding application can be reviewed by TENCAN engineers.
What should I include in an export quotation request?
Specify XQM-0.2S, sample and jar requirements, destination, mains voltage, frequency and phase. Check transfer/access openings, working height, loaded equipment mass, cable feedthroughs and heat removal. Placement in a glovebox does not make the mill itself a vacuum-rated pressure vessel. Confirm included accessories, packing, required documents, commercial terms and lead time in the quotation.
Start with your sample.
Nominal capacity, jar volume and usable sample load are different. Confirm the model, jars and electrical requirements with our engineers.
