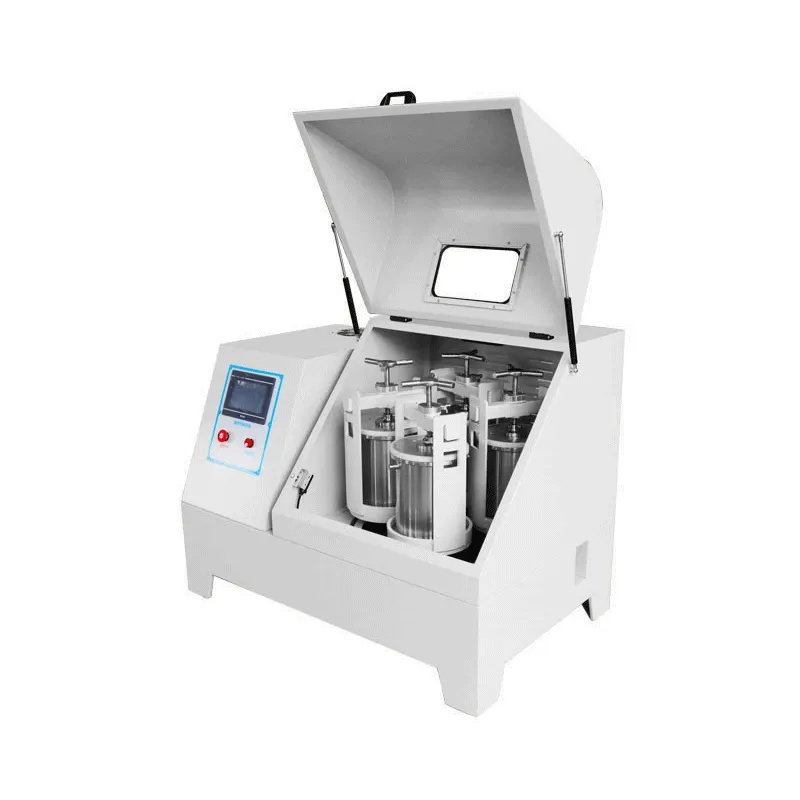

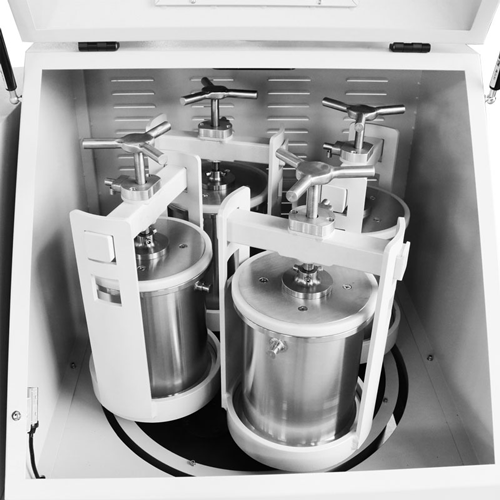

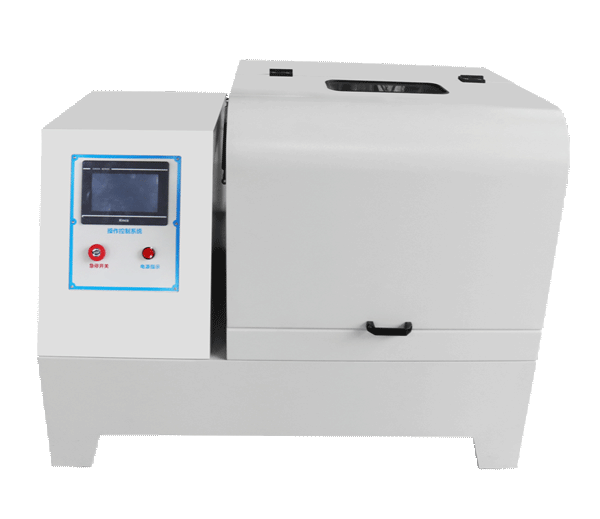

Micro-computerized Touch Screen Planetary Ball Mill

XQM touchscreen configuration

Micro-computerized Touch Screen Planetary Ball Mill

A planetary milling configuration with a touchscreen control system.

Discuss this configuration Test your material

Overview

A planetary milling configuration with a touchscreen control system. Select the mechanical base machine first, then specify the required control functions and operating interface.

How it works

The grinding mechanism remains planetary impact and friction. A touchscreen changes the way the operating program is entered and monitored; it does not by itself establish a finer particle-size result.

Key features

Touchscreen operation is the distinguishing feature identified in the Chinese description.
The mechanical chart is a shared XQM reference, so dimensions and power must be tied to the chosen base model.
Required program, reversing and monitoring functions should be listed in the configuration request.

Specifications

Published catalog references are reproduced below. Nominal volume is not a sample-mass rating. Confirm the selected model, material grade, electrical supply and complete supplied configuration in the quotation.

Model specifications — 1
No.	Model	Configuration	Jar holder internal diameter (mm)	Motor power	Jar revolution diameter (mm)
1	XQM-0.2	Micro	50	90W	Φ111
2	XQM-0.2S	Micro / glovebox	50	90W	Φ111
3	XQM-0.4A	A-series housing	80	250W	Φ140
4	XQM-6	—	134	0.75kW	Φ234
5	XQM-4A	A-series housing	134	0.75kW	Φ234
6	XQM-(8-12)	—	162	1.5kW	Φ275
7	XQM-(8-12)A	A-series housing	162	1.5kW	Φ275
8	XQM-16A	A-series housing	182	3kW	Φ320
9	XQM-20	—	222	4kW	Φ385
10	XQM-40	—	250	5.5kW	Φ430
11	XQM-60	—	275	7.5kW	Φ490
12	XQM-100	—	326	11kW	Φ578
13	XQM-200	—	460	22kW	Φ738

Model specifications — 2
No.	Dimensions (mm)	Net mass (kg)
1	420×260×310	25
2	Mill: 390×220×270 ; control box: 200×180×240	29
3	530×300×360	34
4	760×470×580	100
5	760×470×600	85
6	900×600×640	168
7	880×560×642	150
8	950×600×710	205
9	1200×790×930	392
10	1400×880×1070	656
11	1600×1070×1250	950
12	1750×1140×1330	1300
13	2670×1600×2804	2725

The mechanical rows are base-platform references, not a complete specification for the supplied sieve or control system.

Applications

Laboratory and process work requiring a clearly specified operating interface and program setup.

Suitability depends on the actual sample, process and analytical requirements; a listed application is not a guaranteed final-particle-size result.

Accessories and options

Discuss the required interface, base machine, jars, media and any temperature-related functions. Optional monitoring or communications must be explicitly confirmed in the quotation.

Jar and media: confirm material, volume, holder fit and the complete working load.
Vacuum or gas requirements: specify the complete jar, lid and seal arrangement; no pressure rating is assumed.
Utilities and supply scope: state voltage, frequency, phase, destination and required documents; confirm included versus optional items.

Compare milling jars · Compare grinding media · Low temperature planetary grinding machines · Ultrasonic planetary ball mills

Selection guidance

Work through the selection guide · Request a configuration quotation

Trials and comparisons

Equipment-family reference

Silica

XQM; exact model not recorded · Dry milling

Sample: 176 g
Jar: 500 mL alumina/corundum jar
Recorded sampling / duration: 45 min

Recorded observations
Observation	Sampling time	D50 (µm)	D90 (µm)
Starting sample	Before milling	26.15	58.62
Recorded sample	45 min	1.77	3.69

The XQM-family record does not identify touchscreen control. This is an XQM-family record, not verification of every XQM model. The requested 1 µm target was not demonstrated. Exact ceramic/media grades and measurement/dispersion methods are not supplied.

How to plan a fair comparison

If interface reproducibility is being evaluated, run a defined protocol on the same mechanical platform and compare the actual recorded operating conditions and analytical results.

These anonymous records are not operating instructions. Measurement and dispersion methods are not fully specified in the test summaries; results apply to the reported samples and conditions.

Discuss a matched sample evaluation

Product FAQs

Does touchscreen control guarantee better grinding results?

No. The result still depends on material, jar, media, loading and operating conditions. The interface can support program setup, but no matched touchscreen-versus-conventional performance test is identified in the available test summaries.

How should I select the XQM touchscreen configuration configuration?

Select sample capacity and jar compatibility before specifying the interface. Confirm which settings, records or communications are actually supplied; a touchscreen alone is not a data-integrity or regulatory certification. Touchscreen operation is the distinguishing feature identified in the Chinese description. Nominal mill capacity is not the usable sample mass; account for media and working space.

Which jars and grinding media should I request for this mill?

Touchscreen control does not establish jar dimensions. Match standard or vacuum jars to the actual XQM base model. Choose the jar working material and media around sample chemistry and contamination limits; confirm the complete loaded mass.

Are cooling and ultrasonic equipment included?

Discuss the required interface, base machine, jars, media and any temperature-related functions. Optional monitoring or communications must be explicitly confirmed in the quotation. Optional equipment is included only when it is explicitly listed in the agreed configuration and quotation.

What trial evidence is available for this mill?

Silica: XQM; exact model not recorded, 176 g in 500 mL alumina/corundum jar, 45 min. The XQM-family record does not identify touchscreen control. This is an XQM-family record, not verification of every XQM model. The requested 1 µm target was not demonstrated. Exact ceramic/media grades and measurement/dispersion methods are not supplied. A free sample-grinding application can be reviewed by TENCAN engineers.

What should I include in an export quotation request?

Specify XQM touchscreen configuration, sample and jar requirements, destination, mains voltage, frequency and phase. Select sample capacity and jar compatibility before specifying the interface. Confirm which settings, records or communications are actually supplied; a touchscreen alone is not a data-integrity or regulatory certification. Confirm included accessories, packing, required documents, commercial terms and lead time in the quotation.

Start with your sample.

Nominal capacity, jar volume and usable sample load are different. Confirm the model, jars and electrical requirements with our engineers.
