SXQM series

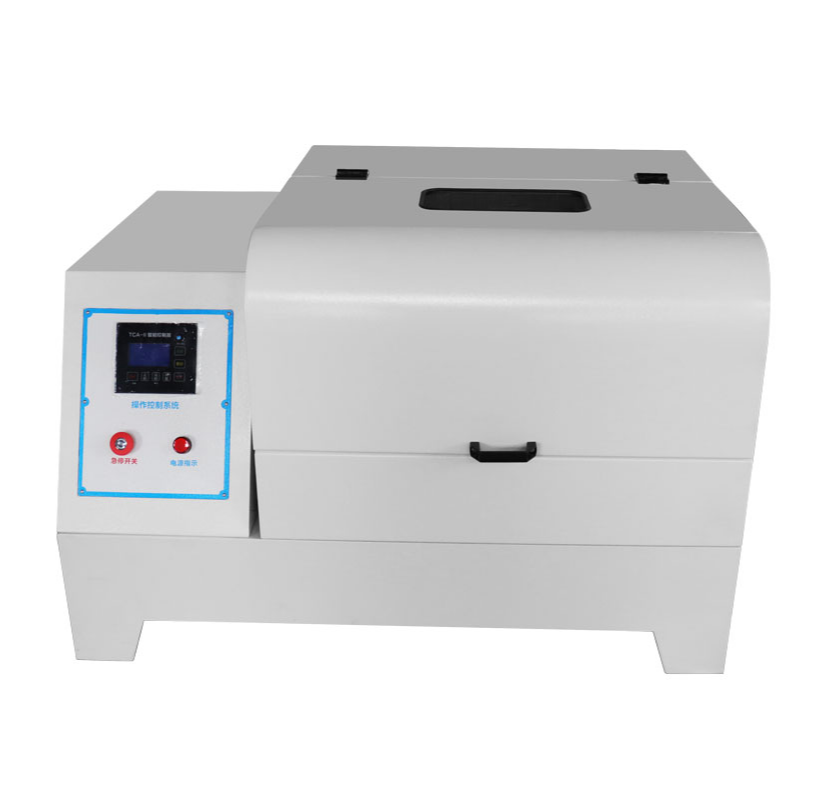

Dual Planetary Ball Mill
A dual-planetary laboratory mill with a compound disc arrangement.
Overview

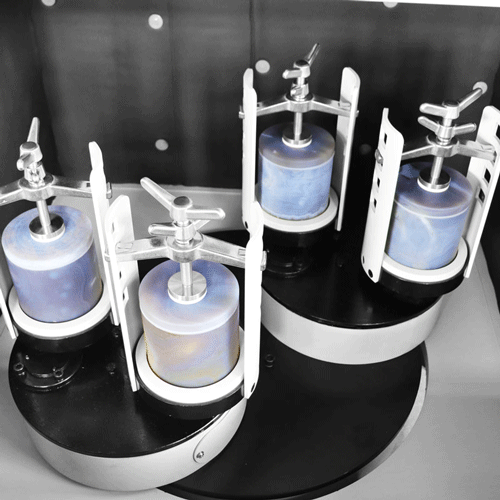

A dual-planetary laboratory mill with a compound disc arrangement. The product information describes a large planetary disc driving smaller planetary discs, adding a distinct motion arrangement to the milling process.
How it works
The larger and smaller disc motions act together with jar rotation. This changes the mechanical loading of the media compared with a conventional single-planetary arrangement, but the final result still needs sample-specific evaluation.
Key features
- The published SXQM chart lists 0.4, 1, 2, 4 and 6 L nominal configurations.
- Four jar positions are listed; “dual planetary” does not mean a two-jar machine.
- Capacity, drive, speed and dimensions are reproduced from the matched SXQM tables.
Specifications
Published catalog references are reproduced below. Nominal volume is not a sample-mass rating. Confirm the selected model, material grade, electrical supply and complete supplied configuration in the quotation.
| Model | Nominal capacity | Compatible jar volume | Jar positions | Vacuum jar option |
|---|---|---|---|---|
| SXQM-0.4 | 0.4L | 50-100mL | 4 | 50mL vacuum jar |
| SXQM-1 | 1L | 250mL | 4 | 50-100mL vacuum jar |
| SXQM-2 | 2L | 500mL | 4 | 50-250mL vacuum jar |
| SXQM-4 | 4L | 1000mL | 4 | 50-1000mL vacuum jar |
| SXQM-6 | 6L | 1500mL | 4 | 50-1000mL vacuum jar |
| Model | Electrical supply | Motor power (kW) | Programmable run time (min) | Reversing interval (min) | Revolution speed (rpm) |
|---|---|---|---|---|---|
| SXQM-0.4 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 |
| SXQM-1 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 |
| SXQM-2 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 |
| SXQM-4 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 |
| SXQM-6 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 |
| Model | Jar rotation speed (rpm) | Published noise level (dB) |
|---|---|---|
| SXQM-0.4 | 140-1120 | 58±5 |
| SXQM-1 | 140-1120 | 60±5 |
| SXQM-2 | 140-1120 | 60±5 |
| SXQM-4 | 140-1120 | 60±5 |
| SXQM-6 | 140-1120 | 60±5 |
| Model | Motor power (kW) | Speed control | Machine mass (kg) | Dimensions (mm) |
|---|---|---|---|---|
| SXQM-0.4 | 0.75 | Variable-frequency control | 250 | 1150×800×760 |
| SXQM-1 | 0.75 | Variable-frequency control | 250 | 1150 × 800 × 760 |
| SXQM-2 | 0.75 | Variable-frequency control | 250 | 1150 × 800 × 760 |
| SXQM-4 | 0.75 | Variable-frequency control | 250 | 1150 × 800 × 760 |
| SXQM-6 | 0.75 | Variable-frequency control | 250 | 1150 × 800 × 760 |
Applications
Laboratory powder processing, mixing and materials-development trials requiring evaluation of a compound planetary motion.
Suitability depends on the actual sample, process and analytical requirements; a listed application is not a guaranteed final-particle-size result.
Accessories and options
Discuss compatible jar materials, media and listed vacuum-jar options. Cooling and other process assistance require a configuration-specific check.
- Jar and media: confirm material, volume, holder fit and the complete working load.
- Vacuum or gas requirements: specify the complete jar, lid and seal arrangement; no pressure rating is assumed.
- Utilities and supply scope: state voltage, frequency, phase, destination and required documents; confirm included versus optional items.
Compare milling jars · Compare grinding media · Low temperature planetary grinding machines · Ultrasonic planetary ball mills
Selection guidance
Select the jar volume, complete loaded mass and sample requirements together. Confirm whether the proposed motion and operating program are suitable for the material instead of relying on a universal high-energy claim.
Work through the selection guide · Request a configuration quotation
Trials and comparisons
No identifiable trial of this exact product/configuration was found in the available planetary-milling test summaries. A result from a different mill, jar grade or assistance system is not attributed to this product.
A comparison to request
A meaningful comparison uses the same material and analytical method with documented media and loading. The supplied workbook does not identify an SXQM-controlled comparison, so a quantified improvement is not claimed.
Discuss a sample evaluationProduct FAQs
Does “dual planetary” refer to the number of jars?
No. It describes the compound planetary-disc arrangement. The product information lists four jar positions for the SXQM models on this page.
How should I select the SXQM series configuration?
Select the jar volume, complete loaded mass and sample requirements together. Confirm whether the proposed motion and operating program are suitable for the material instead of relying on a universal high-energy claim. The published SXQM chart lists 0.4, 1, 2, 4 and 6 L nominal configurations. Nominal mill capacity is not the usable sample mass; account for media and working space.
Which jars and grinding media should I request for this mill?
The SXQM chart lists four jar positions and separate standard/vacuum-jar volumes; dual planetary motion does not mean two jars. Choose the jar working material and media around sample chemistry and contamination limits; confirm the complete loaded mass.
Are cooling and ultrasonic equipment included?
Discuss compatible jar materials, media and listed vacuum-jar options. Cooling and other process assistance require a configuration-specific check. Optional equipment is included only when it is explicitly listed in the agreed configuration and quotation.
What trial evidence is available for this mill?
No matching measured trial is identified for Dual Planetary Ball Mill in the available summaries. A meaningful comparison uses the same material and analytical method with documented media and loading. The supplied workbook does not identify an SXQM-controlled comparison, so a quantified improvement is not claimed. A free sample-grinding application can be reviewed by TENCAN engineers.
What should I include in an export quotation request?
Specify SXQM series, sample and jar requirements, destination, mains voltage, frequency and phase. Select the jar volume, complete loaded mass and sample requirements together. Confirm whether the proposed motion and operating program are suitable for the material instead of relying on a universal high-energy claim. Confirm included accessories, packing, required documents, commercial terms and lead time in the quotation.
Start with your sample.
Nominal capacity, jar volume and usable sample load are different. Confirm the model, jars and electrical requirements with our engineers.
